Inverter home appliance
Application Overview
Application Overview
The load in the field of inverter home appliance is mainly speed-regulating motor, and its main circuit topology is basically similar with EV inverters except for the difference of output power. Home appliance, like inverter refrigerator, operates indoors for a long time, low power loss and low noise are necessary. The "frequency conversion" of the inverter refrigerator is mainly reflected in the control of the compressor. The traditional compressor has only "on" and "off" operation models, which is inefficient. The compressor speed of variable frequency refrigerator can be continuously adjusted according to the requirement of set temperature, and the energy saving effect is obvious. At the same time, the carrier frequency is above 16KHz, and the noise reduction effect is obvious.
For the application of variable frequency household appliances, Marching Power has developed a series of products such as IPM modules, high-frequency IGBT transistors, VDMOS transistors, etc.
Inverter home appliance

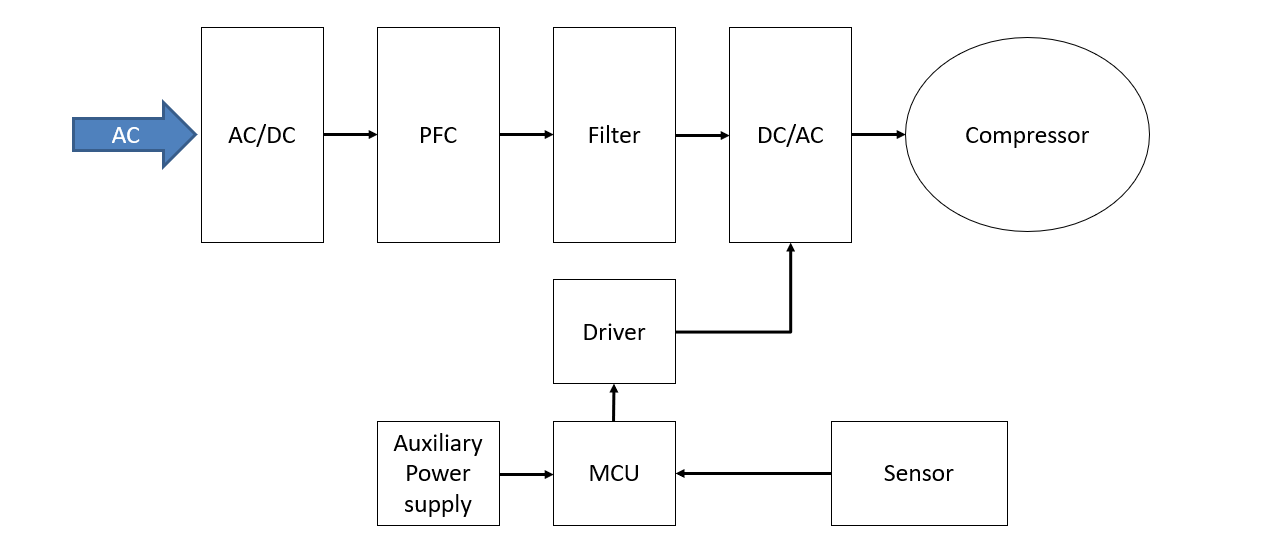

Application System Diagram
Application System Diagram
Inverter home appliance

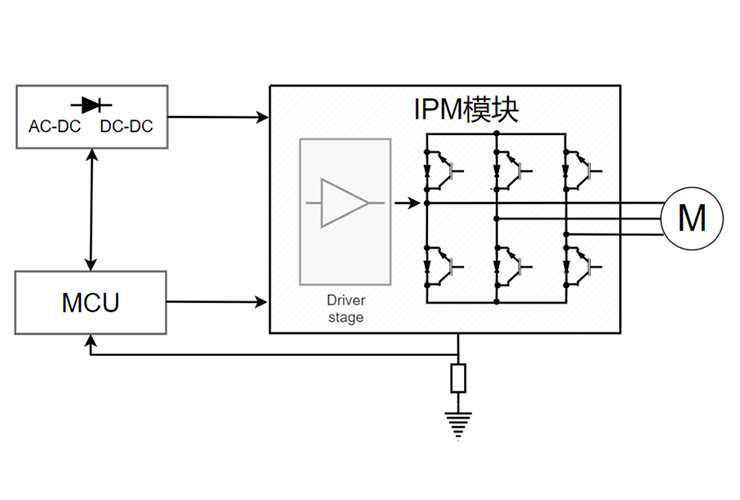

Application Topology Diagram
Application Topology Diagram
Inverter home appliance
Recommended Products
Recommended Products
IGBT Discretes Product List
| Part Number | VCE(V) | Ic(A)@100℃ | Vcesat(V) @25℃ typ |
Eon(mJ) | Eoff(mJ) | Package | Datasheet |
|---|---|---|---|---|---|---|---|
| MPBX20N65EF | 650 | 20 | 1.45 | 0.373 | 0.376 | TO-220F/220/263/247/3P | Download |
| MPBX15N65EF | 650 | 15 | 1.45 | 0.28 | 0.3 | TO-220F/TO-220/TO-263 | Download |
| MPBX10N65EF | 650 | 10 | 1.4 | 0.17 | 0.2 | TO-220F/TO-220/TO-252 | Download |
IPM Product List
